382811-9
Manufacturer:
TE Connectivity
Mfr.Part #:
382811-9
Datasheet:
Description:

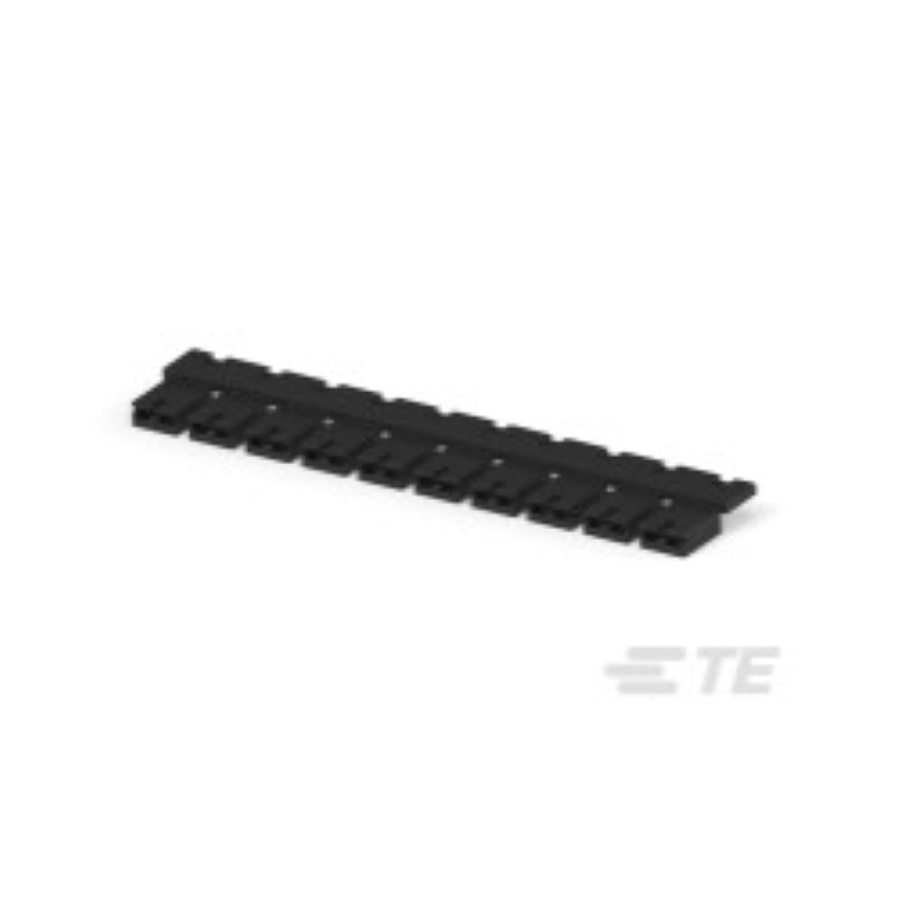

Headers and Wire Housings Number of Positions:2 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 5.08 mm |
| Width | 2.54 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -65 °C |
| Height | 6.35 mm |
| Packaging | Bulk |
| Depth | 6.35 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 4 days ago) |
| Color | Red |
| Gender | Pin (Male) |
| Number of Contacts | 2 |
| ELV | Compliant |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Row Spacing | 2.54 mm |
| Housing Material | Polyester |
| Contact Current Rating | 3 A |
| Housing Color | Red |
| Plating Thickness | 381 nm |
| Contact Gender | Male |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 4 days ago) |
